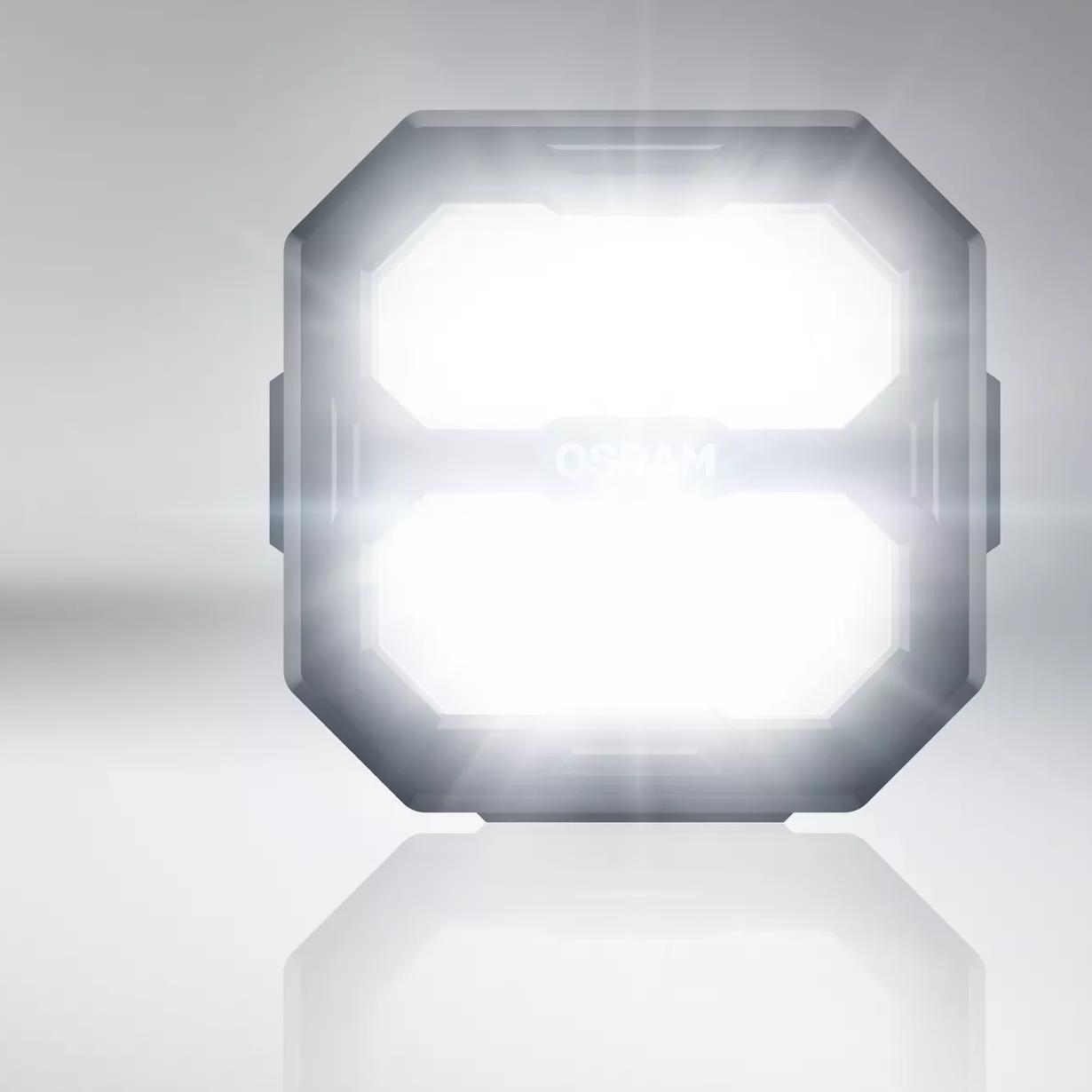

Cube PX Wide Beam
Professional light for professional work
With the OSRAM LEDriving Professional Series PX working lights portfolio, it is now possible to find exactly the right lighting for a wide range of special professional tasks and applications. The 16 working lights in total score points with maximum optical efficiency, effectiveness, and homogeneous light distribution. The modular series focuses on the most important aspects of worklight use: Illumination, performance, quality, shape, durability, functionality, and thus can also result in increased safety at work for you and others. The optimal factors can be selected and prioritized for each corresponding application; thus, with these high-performance lights, a complete vehicle-specific lighting set-up can be put together, that this is perfectly applicable to the respective individual requirements and needs.The working lights are suitable for 12V and 24V vehicles and a total of four beam patterns - Flood, Spot, Wide and Ultra-Wide - and four power levels - 1500lm, 2500lm, 3500lm and 4500lm - are available for each light. In addition, they can be mounted in three different ways: Direct mounting, flexible standard mounting, and heavy-duty mounting. Additionally, OSRAM has developed specially designed mounting kits and a cable with DT-connector. Validated according to the highest IP & IK protection classes IP6K8 & IP6K9K and CISPR25 Class 5, the Professional Series is designed to meet the highest OE standards and requirements of the automotive industry. OSRAM provides a 5-year guarantee on these products1)2)
1) Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52 (7). However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed.
2) For precise conditions refer to: www.osram.com/am-guarantee
1) Additional working lights without ECE approval for use as work lights are approved for use on any vehicle according to German Road Traffic Licensing Regulations (StVZO) §52 (7). However, they must not be used and switched on while driving. In addition, individual special regulations, and laws of countries outside Germany must be observed.
2) For precise conditions refer to: www.osram.com/am-guarantee
Technical Data
Product information
Application (Category and Product specific)
Working light application
General Product Information
Global order reference
LEDPWL 114
Electrical Data
Nominal voltage
12/24 V
Nominal wattage
15 W
Photometric Data
Nominal luminous flux
1500 lm
Light distance at 1lx
35 m
Color temperature
6000 K
Physical Attributes & Dimensions
Product weight
653.00 g
Length
117.1 mm
Width
67.4 mm
Height
113.4 mm
Lifetime Data
Guarantee
5 years
Additional product data
Connector to lamp
DT Connector
Capabilities
Technology
LED
Certificates & standards
Standards
ECE R10 / CISPR25 / CLASS 5 / FCC part 15b
Type of protection
IP6K8/IP6K9K
Logistical data
Commodity code
85122000900
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of declaration
29-10-2024
Declaration no. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
---|---|---|---|---|---|
4062172279666 |
FS
| 1 | 122mm x 116mm x 76mm | 677.00g | 1.08dm³ |
4062172279673 |
VS
| 10 | 391mm x 253mm x 135mm | 6954.00g | 13.35dm³ |
