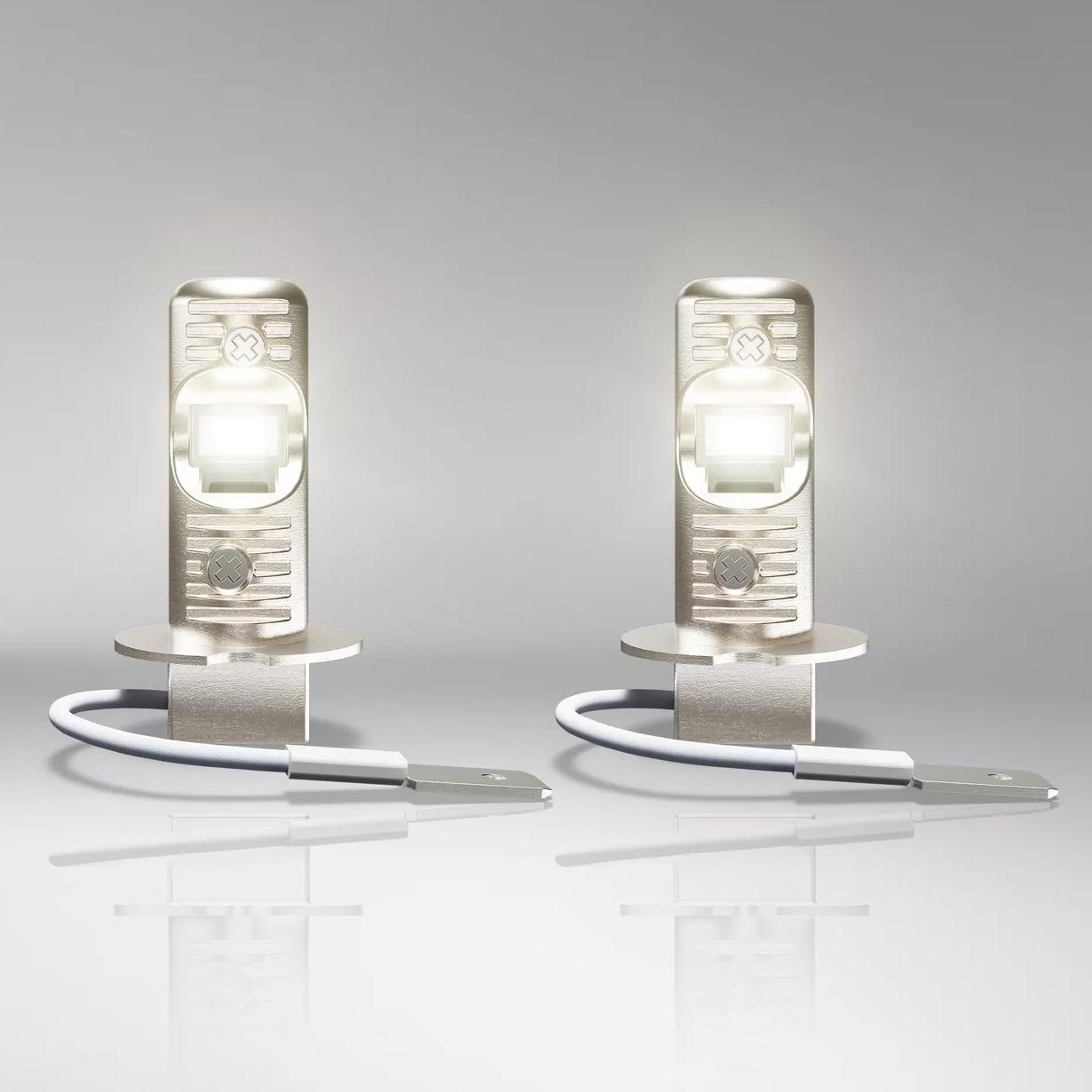

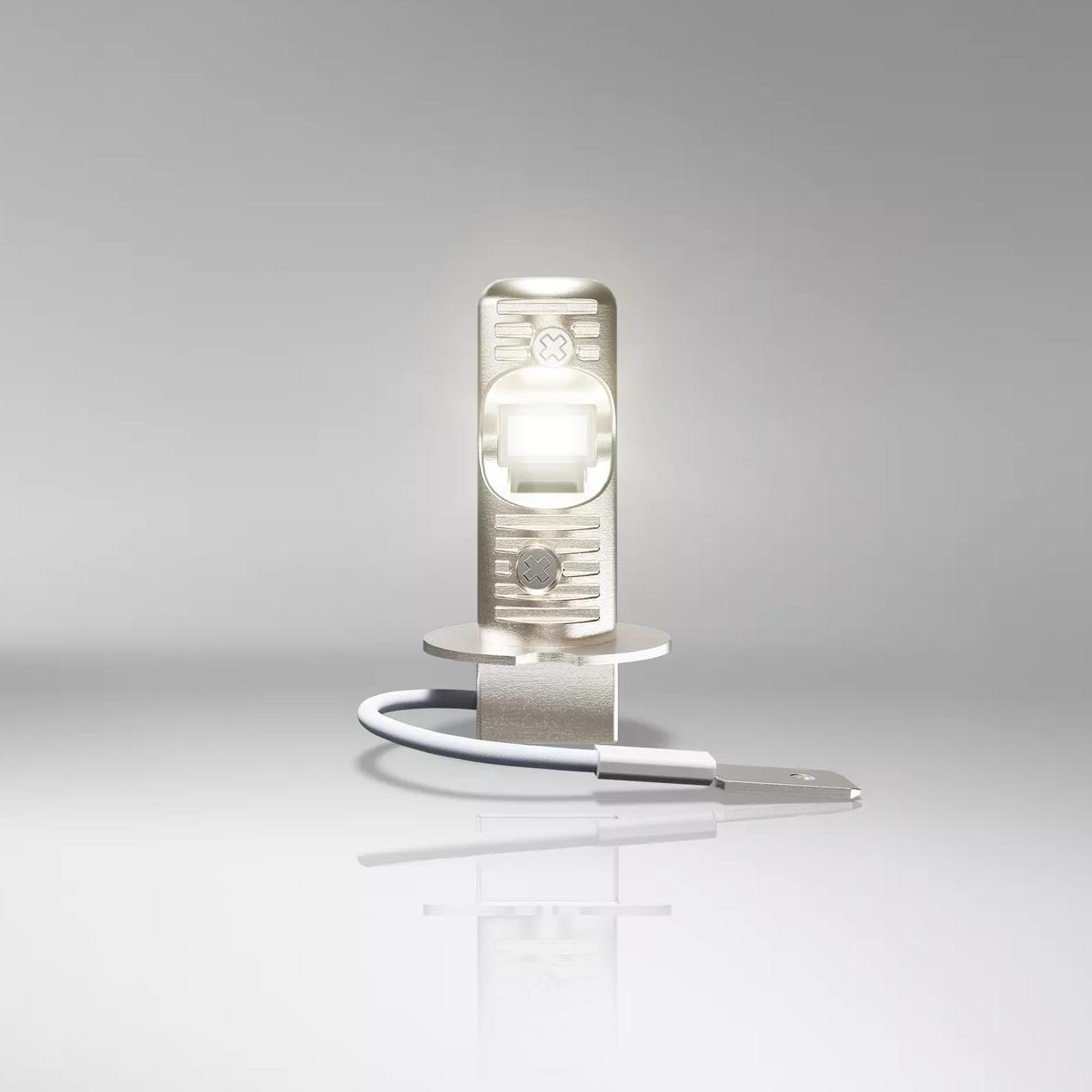

LEDriving HL EASY H3

LED high and low beams lamps with plug & play system: no adapters and caps needed.

With its socket-based solution, the OSRAM LEDriving HL EASY retrofits provide an ultra-compact LED replacement of conventional H1, H3, H7/H18, H4/H19 and H15 high and low beam lamps with cool white LED light – providing a stylish look as well as superior brightness. It offers an easy plug & play installation with optimized compatibility: no adapters and caps needed! An optimized high-speed fan ensures active cooling – making a higher performance and high-level light output possible thanks to maximized heat dissipation.The LEDriving HL EASY high and low beam lamps by OSRAM replace conventional halogen lamps, are 12V compatible and have a cool white color temperature. With the latest LED technology and very compact design, these lamps allow a high compatibility and an easy installation for cars with the respective halogen lamp types. These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
HAVE ON ADEQUATE GLOVES WHEN MOUNTING AND DEMOUNTING ATTENTION HOT SWITCH OFF HEADLIGHTS BEFORE CHANGING LAMPS USE ADEQUATE EYE PROTECTION WHEN MOUNTING AND DEMOUNTING RADIATION RISK AM Icon Offroad EAC CERTIFICATION HOT SURFACE NON ECE CONFORM OC 061 UKRAINE

Technical Data

Product information

Application (Category and Product specific)

Mainly used for Low Beam, High Beam

Product type (off-road vs. on-road)

Off-road ≙ H3

General Product Information

Global order reference

64151DWESY

Electrical Data

Power input

8 W

Nominal voltage

12.0 V

Nominal wattage

8 W

Test voltage

13.2 V

Photometric Data

Nominal luminous flux

900 lm

Luminous flux tolerance

±25 %

Light color LED

Cool white

Color temperature

6500 K

Physical Attributes & Dimensions

Length

41.0 mm

Diameter

12.5 mm

Product weight

13.80 g

Lamp base

PK22s

Lifetime Data

Lifespan Tc

1000 hr

Capabilities

Technology

LED

Environmental & Regulatory Information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of declaration

30-09-2024

Primary article identifier

4062172369329 | 4062172398053 | 4062172367264

Declaration no. in SCIP database

In work

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4062172369329 HCB

HARD COVER BOX

2 114mm x 48mm x 106mm 120.00g 0.58dm³
4062172369336 VS

SHIPPING BOX

10 268mm x 126mm x 125mm 683.00g 4.22dm³
4062172398053 HFB

Hanging Folding Box

2 100mm x 51mm x 120mm 58.00g 0.61dm³
4062172398060 VS

SHIPPING BOX

10 266mm x 111mm x 134mm 367.00g 3.96dm³

Downloads

Tools

Product label

These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads tocancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
