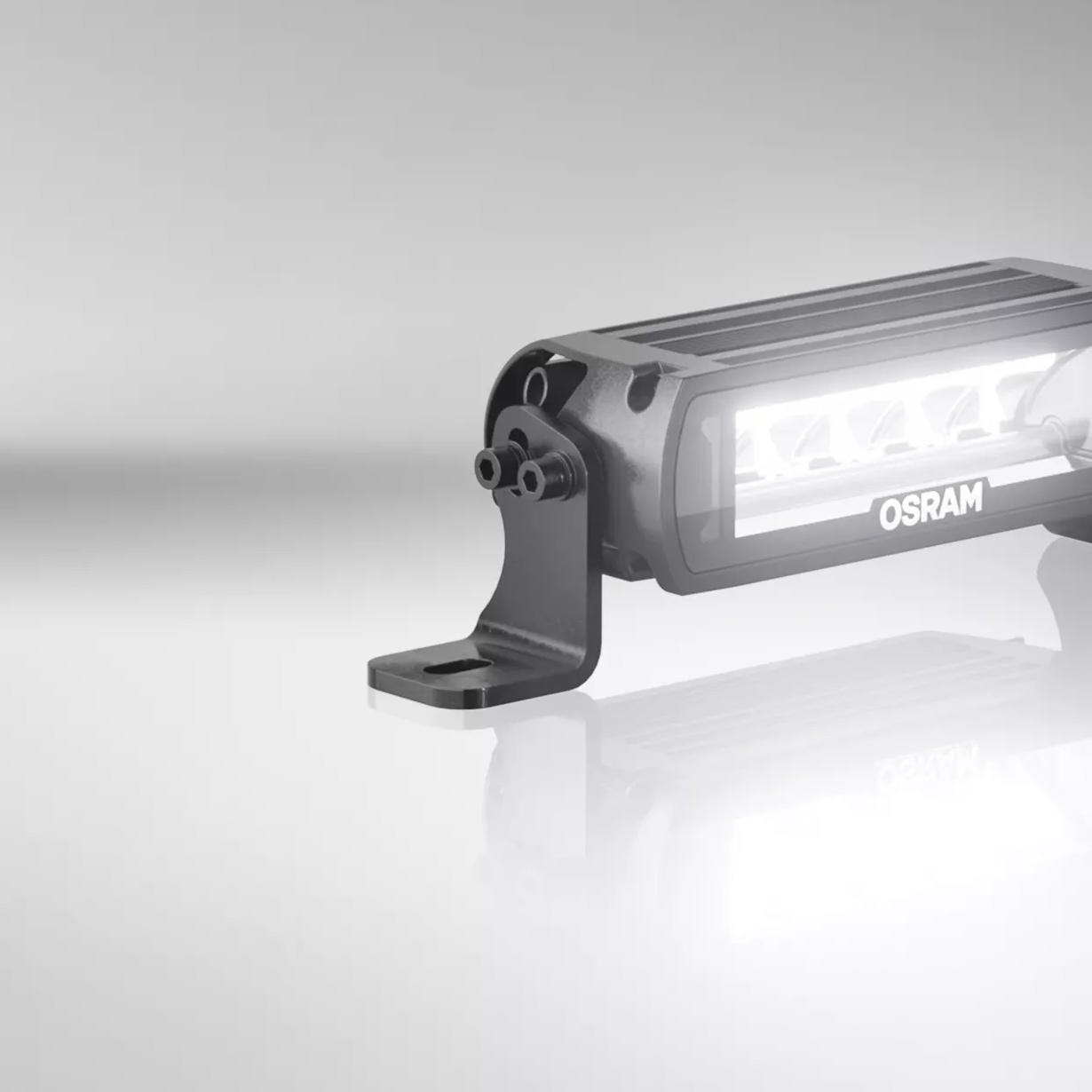

Lightbar FX125-SP GEN 2

Increased brightness for far and near field illumination

Particularly when driving on rural and dirt roads, a greater range of visibility can play a key role in ensuring safety. The LEDriving Lightbar FX125-SP GEN 2 provides additional, near and far field illumination on dark roads with up to 1.300 Lumen. Even in poor visibility conditions or at dusk, the 5 high-performance LEDs reach a light distance of up to 270 meters and daytime lighting conditions with a color temperature of 6000 Kelvin. The driving light impresses with its special reflector design and ensure not only a modern and appealing look but also reduces glare for more visibility on the road. It can be used as both a supplementary LED high beam headlight and a powerful working light. The light is fully ECE-compliant in both versions and therefore suitable for use on roads. Additionally, OSRAM has developed a specially designed mounting kit, compatible with all driving lights of the Functional series FX Gen 2 for individual mounting. Versatile applicable, it defies numerous environmental influences and, thanks to high-quality materials such as the aluminum housing and the stable polycarbonate lens, it is particularly light and at the same time robust and resistant. Complete polarity protection both prevents damage from excess voltage and contributes to a longer lifespan. The LEDriving Lightbar FX125-SP GEN 2 has been tested and validated with the IP-Protection Classes IP6K8 & IP6K9K in our DIN certified environmental simulation laboratory for extreme external influences regarding water, dust, impacts, heat, cold and permanent vibration. Its variability gives the FX series a flexible range of uses. They can be attached to cars, trucks, agricultural machinery, commercial vehicles, construction vehicles, caravans, off-road vehicles and quads1). OSRAM provides a 5-year guarantee2).1) OSRAM LEDriving Driving Lights are approved according to ECE regulations and may therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to ECE approval of the product, individual special requirements and legislation of the countries must be observed. 2) For precise conditions refer to: www.osram.com/am-guarantee

Technical Data

Product information

Application (Category and Product specific)

Driving Light - Additional high beam application

General Product Information

Global order reference

LEDDL128-SP

Electrical Data

Nominal wattage

18 W

Photometric Data

Nominal luminous flux

1300 lm

Color temperature

6000 K

Light distance at 1lx

270 m

Physical Attributes & Dimensions

Length

182.0 mm

Product weight

1076.00 g

Width

83.0 mm

Height

54 mm

Lifetime Data

Lifespan Tc

> 5000 hr

Guarantee

5 years

Additional product data

Connector to lamp

Deutsch (DT04-2P, DT06-2S)

Capabilities

Technology

LED

Light-emitting diode application

Certificates & standards

Type of protection

IP6K8/IP6K9K

Approval marks – approval

E4 approval

Standards

R10 / R149

Logistical data

Commodity code

85122000900

Environmental & Regulatory Information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of declaration

29-10-2024

Declaration no. in SCIP database

In work

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4062172365543 FS

FOLDING BOX

1 283mm x 137mm x 89mm 1246.00g 3.45dm³
4062172365550 VS

SHIPPING BOX

8 373mm x 304mm x 305mm 10638.00g 34.58dm³
